Oil & Gas Spray Nozzles Manufacturer

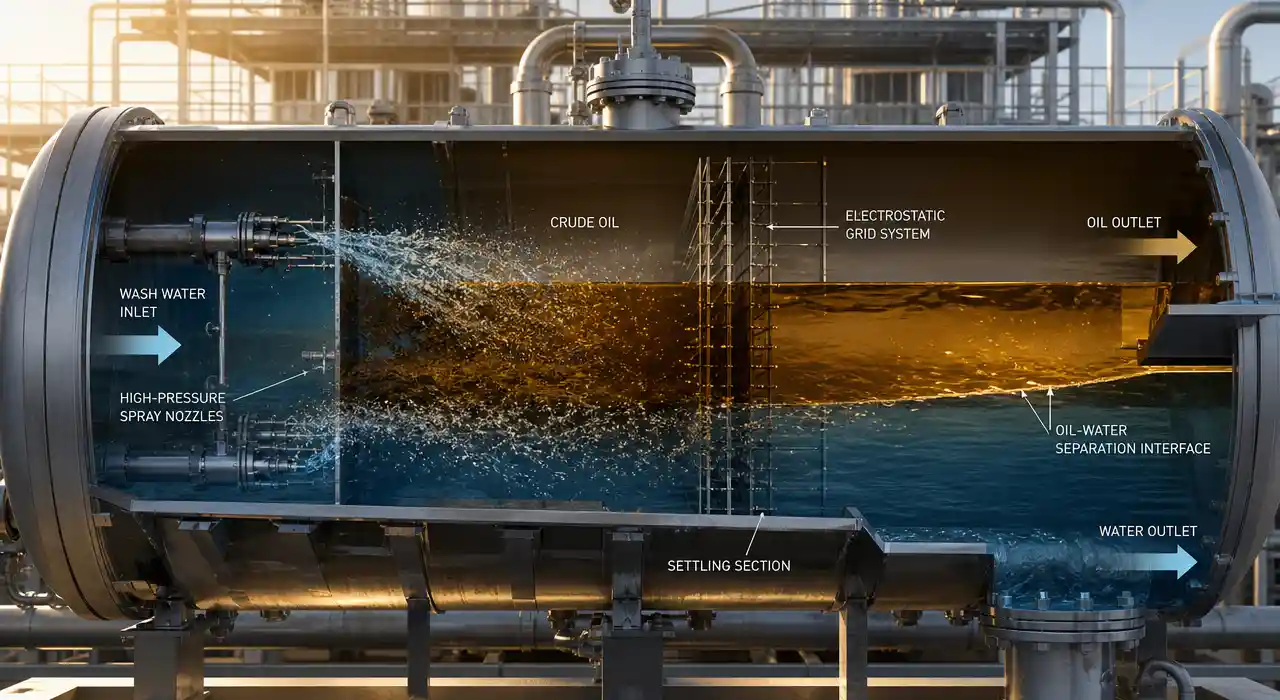

Oil refineries use specialized nozzles for multiple critical applications. Crude desalting requires high-pressure nozzles (50-200 bar) creating fine droplets (50-500 microns) for wash water injection achieving salt removal from 50-200 PTB to below 3 PTB. Tank cleaning employs 3D rotary spray heads operating at 50-200 bar removing sludge from crude and product storage tanks in 12-48 hours. Fire protection systems use high-flow nozzles (100-2000 L/min) with wide angles delivering 5-15 L/min/m². Process cooling requires full cone nozzles for heat exchanger spray and quench systems. All refinery nozzles must meet explosion-proof requirements for Class I Division 1 or Zone 1 hazardous areas.

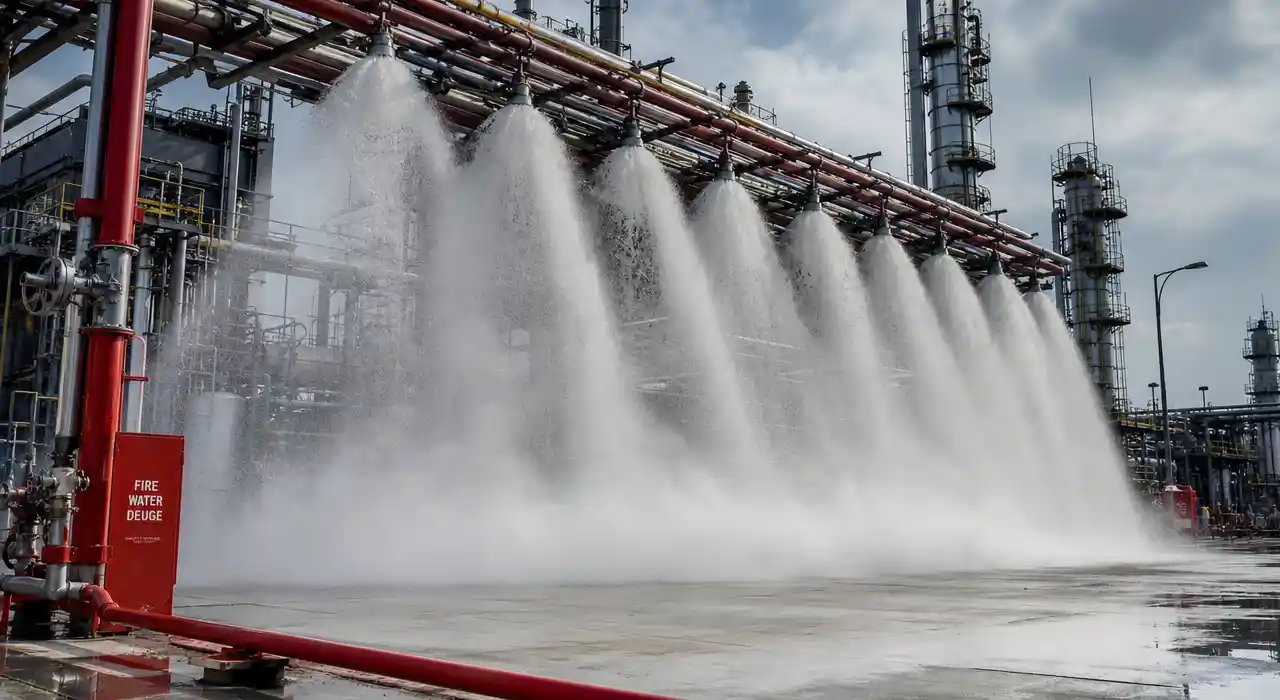

Yes, we specialize in fire protection spray nozzles meeting offshore regulatory requirements including API RP 14C, NFPA 15, and BSEE regulations. Our offshore deluge nozzles feature super duplex or 316L stainless steel construction providing 20-30 year service life in saltwater deluge service, deliver high-flow capacity (200-2000 L/min) providing required densities (10-20 L/min/m²), and include integral strainers preventing clogging. Type approval certificates from DNV, ABS, and Lloyd's Register enable platform certification.

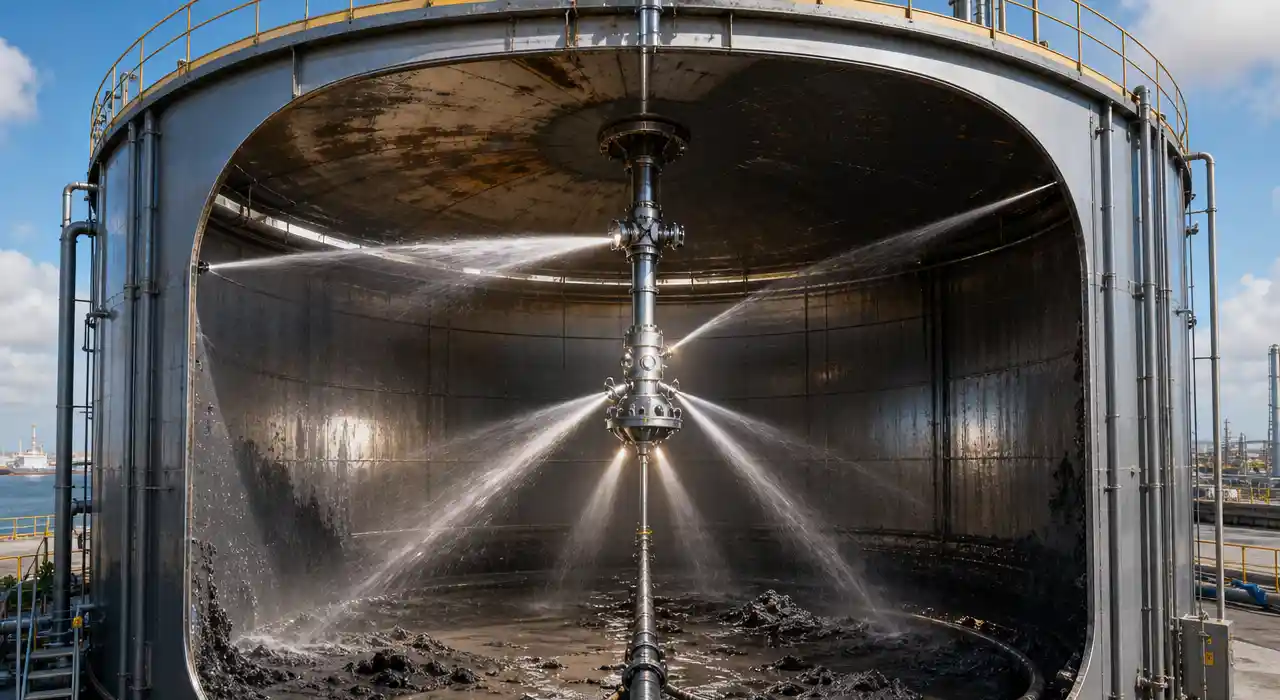

Crude oil tank cleaning requires high-impact automated spray systems. We recommend 3D rotary spray heads with programmable rotation patterns providing complete tank coverage without personnel entry. High-pressure operation (80-200 bar) generates concentrated water jets removing heavy crude sludge and wax deposits. Flow rates of 200-800 L/min enable cleaning 10,000-200,000 barrel tanks in 12-48 hours. Heating integration (80-150°C) mobilizes waxy deposits accelerating cleaning.

Yes, we provide replacement spray nozzles for refineries and offshore platforms. Our engineering team conducts facility assessments evaluating fire protection system compliance, inspecting desalter spray distribution, and identifying corrosion issues. We offer direct replacements while upgrading to corrosion-resistant materials (316L SS, super duplex, Hastelloy) extending service life from 10-15 years to 20-30+ years. Most oil and gas nozzle upgrades achieve payback within 12-36 months.

Refineries achieve 95-98% desalting efficiency through system optimization. Upgrade mixing nozzles to high-pressure designs (100-200 bar) creating finer water droplets (50-200 microns). Install multi-point injection arrays ensuring uniform wash water distribution. Maintain desalter temperature at 110-150°C. Implement automated control adjusting wash water flow based on inlet salt monitoring. Annual savings of $500,000-2,000,000 result from extended equipment life and reduced maintenance.

Fire protection deluge nozzles require annual visual inspection and quinquennial flow testing per NFPA 25. Desalter spray nozzles need quarterly inspection during turnarounds checking for erosion or plugging. Tank cleaning nozzles require post-use inspection and cleaning, with replacement after 50-100 cleaning cycles. All refinery spray systems benefit from hazardous area maintenance procedures including hot work permits and lockout-tagout.
